IEC 60502-1 Cables

600/1000V, XLPE Insulated and Lead Sheathed Cables according to IEC 60502-1 (armoured)

Application:

These IEC 60502-1 cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

Construction

ConductorsConductors shall be Round Stranded (Non-compacted or Compacted) or shaped, Class 2 as per IEC 60228. For smaller sizes up to and including 4 mm2, Solid Conductors, Class 1 to IEC 60228 can also be provided based on special request.
InsulationXLPE Insulation material and thickness shall be as per IEC 60502-1 rated for 90°C continuos operation. PVC Insulation material and thickness shall be as per IEC 60502-1 and BS 6346. PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS 6346. PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.

Colour Code

Colour Code (1) :
1 Core : Red or Black
2 Cores : Red, Black
3 Cores : Red, Yellow, Blue
4 Cores : Red, Yellow, Blue, Black
5 Cores : Red, Yellow, Blue, Black, Green
Above 5 Cores : Black Cores with White numerals
Colour Code (2) :
1 Core : Brown or Blue
2 Cores : Brown or Blue
3 Cores : Brown, Black, Grey
4 Cores : Blue, Brown, Black, Grey
5 Cores : Green/Yellow, Blue, Brown, Black, Grey
Above 5 Cores :
Assembly / Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers Inner Sheath compatible with the insulation material and the assembly is bedded with an extruded layer of PVC. Lead Sheath Extruded lead Alloy Type "E" to BS 12548. Thickness of lead shall be as per IEC 60502-1. Cables with other thickness of Lead Sheath can also be provided based on

specific request.

ArmourGalvanized Steel Wires in accordance with IEC 60502-1 or BS 6346 or BS 5467 laid

helically over PVC bedding as per requirement. Galvanized Steel Tapes applied helically over PVC bedding in accordance with IEC 60502-1

Outer Sheath

Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467. Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Cable Parameters:

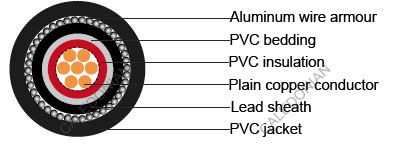

Single core( aluminum wire armoured)

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal dia. of Alum. wire armour	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)
mm²	mm	mm	mm	mm	mm	Kg/Km	Kg/Km
1x35 rm	7.4	0.9	1.2	1.3	1.8	24	1450
1x50 rm	8.8	1	1.2	1.3	1.8	26	1750
1x70 rm	10.6	1.1	1.2	1.6	1.8	28	2075
1x95 rm	12.4	1.1	1.2	1.6	1.8	30	2450
1x120 rm	14	1.2	1.2	1.6	1.8	32	2900

Nominal Cross Section	Diameter of Conductor (Approx.)	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal dia. of Alum. wire armour	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)
mm²	mm	mm	mm	mm	mm	Kg/Km	Kg/Km
1x150 rm	15.5	1.4	1.3	1.6	1.9	34	3300
1x185 rm	17.4	1.6	1.4	1.6	2	37	3950
1x240 rm	20.3	1.7	1.4	2	2.1	41	5000
1x300 rm	22.7	1.8	1.5	2	2.1	44	5825
1x400 rm	25.4	2	1.6	2	2.3	48	7150
1x500 rm	28.8	2.2	1.7	2.5	2.4	54	8900
1x630 rm	30.4	2.4	1.8	2.5	2.6	57	10600

Two cores(Galvanized steel wire armoured)

Nominal Cross Section	Nominal Diameter of Conductor	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal dia. of Steel wire armour	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)
mm²	mm	mm	mm	mm	mm	Kg/Km	Kg/Km
2x2.5 rm	2	0.7	1.2	1.3	1.8	22	1325
2x4 rm	2.6	0.7	1.2	1.3	1.8	23	1450
2x6 rm	3.1	0.7	1.2	1.3	1.8	24	1600
2x10 rm	4	0.7	1.2	1.6	1.8	27	2025
2x16 rm	5	0.7	1.2	1.6	1.8	29	2350
2x25 rm	6.3	0.9	1.2	1.6	1.8	32	2900
2x35 rm	7.4	0.9	1.2	1.6	1.9	35	3350
2x50 rm	8.8	1	1.3	2	2	39	4375

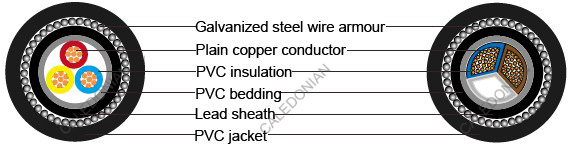

Three cores(Galvanized steel wire armoured)

Nominal Cross Section	Nominal Diameter of Conductor	Nominal Insulation Thickness	Nominal Lead Sheath Thickness		Nominal dia. of Steel wire armour		Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)
mm²	mm	mm	mm		mm		mm	Kg/Km	Kg/Km
			Round conductor
3x1.5 rm	1.6	0.7		1.2		1.3	1.8	22	1275
3x2.5 rm	2	0.7		1.2		1.3	1.8	23	1400
3x4 rm	2.6	0.7		1.2		1.3	1.8	24	1550
3x6 rm	3.1	0.7		1.2		1.3	1.8	25	1725
3x10 rm	4	0.7		1.2		1.6	1.8	28	2175
3x16 rm	5	0.7		1.2		1.6	1.8	30	2575
3x25 rm	6.3	0.9		1.2		1.6	1.9	34	3250
3x35 rm	7.4	0.9		1.3		1.6	1.9	36	3750
3x50 rm	8.8	1		1.4		2	2.1	41	4900
3x70 rm	10.6	1.1		1.5		2	2.2	47	6225
3x95 rm	12.4	1.1		1.6		2.5	2.4	51	7650
3x120 rm	14	1.2		1.7		2.5	2.5	57	9550
3x150 rm	15.5	1.4		1.8		2.5	2.7	62	11300
3x185 rm	17.4	1.6		1.9		2.5	2.8	68	13375
3x240 rm	20.3	1.7		2.1		2.5	3.1	76	16700
3x300 rm	22.7	1.8		2.2		2.5	3.2	82	19725
			Sectoral conductor
3x50 sm	-	1		1.3		2	2.1	39	4450
3x70 sm	-	1.1		1.4		2	2.2	43	5650
3x95 sm	-	1.1		1.5		2	2.4	47	6900
3x120 sm	-	1.2		1.6		2.5	2.5	52	8575
3x150 sm	-	1.4		1.7		2.5	2.7	57	10275
3x185 sm	-	1.6		1.8		2.5	2.8	61	12100
3x240 sm	-	1.7		2		2.5	3	67	14975
3x300 sm	-	1.8		2.1		2.5	3.2	73	17700

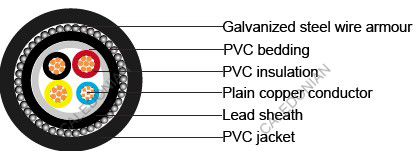

Three cores+1(Galvanized steel wire armoured)

Nominal Cross Section	Diameter of Conductor (Approx.)		Nominal Insulation Thickness		Nominal Lead Sheath Thickness	Nominal dia. of Steel Wire armour	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)
mm²	(3) mm	(1) mm	(3) mm	(1) mm	mm	mm	mm	mm	Kg/Km
3x10 rm+6	5	3.1	0.7	0.7	1.2	1.8	1.6	29	2325
3x16 rm+10	6.3	4	0.7	0.7	1.2	1.8	1.6	31	2775
3x25 rm+16	7.4	5	0.9	0.7	1.2	1.9	1.6	35	3475
3x35 sm+16	-	5	0.9	0.7	1.2	2	1.6	35	3650
3x50 sm+25	-	6.3	1	0.9	1.3	2.1	2	40	4825
3x70 sm+35	-	7.4	1.1	0.9	1.4	2.3	2	45	6175
3x95 sm+50	-	8.8	1.1	1	1.5	2.4	2.5	50	8025
3x120 sm+70	-	10.6	1.2	1.1	1.6	2.6	2.5	54	9575
3x150 sm+70	-	10.6	1.4	1.1	1.7	2.7	2.5	59	11175
3x185 sm+95	-	12.4	1.6	1.1	1.9	2.9	2.5	64	13575
3x240 sm+120	-	14	1.7	1.2	2	3.1	2.5	70	16525
3x300 sm+150	-	15.5	1.8	1.4	2.2	3.4	3.15	78	20800

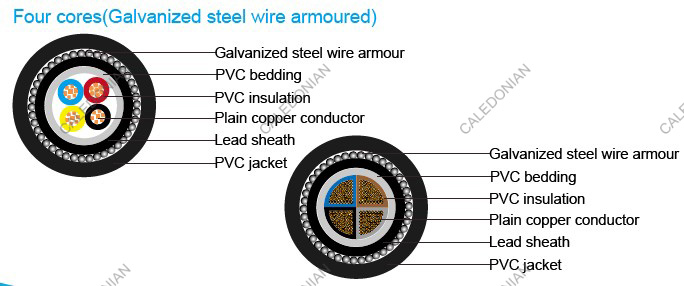

Nominal Cross Section	Nominal Diameter of Conductor	Nominal Insulation Thickness	Nominal Lead Sheath Thickness	Nominal dia. of Steel wire armour	Nominal PVC Sheath Thickness	Overall Diameter (Approx.)	Weight of Cable (Approx.)
mm²	mm	mm	mm	mm	mm	Kg/Km	Kg/Km
4x1.5 rm	1.6	0.7	1.2	1.3	1.8	23	1350
4x2.5 rm	2	0.7	1.2	1.3	1.8	24	1500
4x4 rm	2.6	0.7	1.2	1.3	1.8	25	1700
4x6 rm	3.1	0.7	1.2	1.6	1.8	27	2050
4x10 rm	4	0.7	1.2	1.6	1.8	29	2425
4x16 rm	5	0.7	1.2	1.6	1.8	32	2875
4x25 rm	6.3	0.9	1.3	1.6	1.9	36	3800
4x35 sm	-	0.9	1.2	2	2.1	38	4200
4x50 sm	-	1	1.4	2	2.2	42	5300
4x70 sm	-	1.1	1.5	2	2.3	46	6775
4x95 sm	-	1.1	1.6	2.5	2.5	52	8800
4x120 sm	-	1.2	1.7	2.5	2.7	57	10500
4x150 sm	-	1.4	1.8	2.5	2.9	62	12450
4x185 sm	-	1.6	2	2.5	3	67	14950
4x240 sm	-	1.7	2.2	2.5	3.3	74	18550
4x300 sm	-	1.8	2.3	3.2	3.5	81	22900
